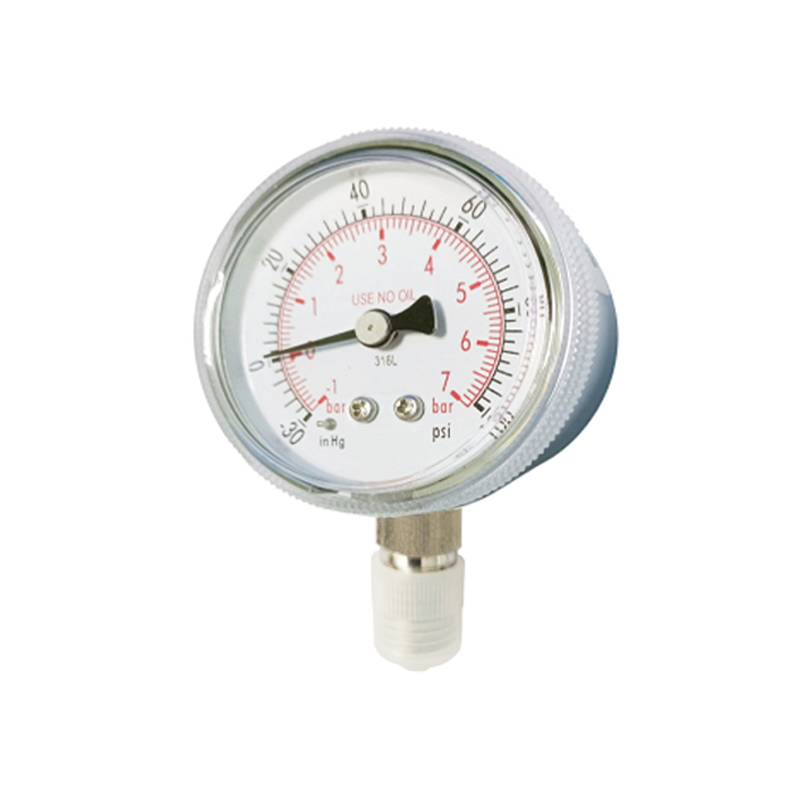

Model

HPG50-VP/AP-4-L/C

Nominal Diameter (mm)
50

Pressure Range
Item No：66003--- -30inHG~0~300psi / 0~600psi

Displacement (mm)
1.1~1.4

Accuracy (%)
ASME 40.100-2013 GradeA

Gas path sur face finish
< 32Ra µin (Internal)

Cleanliness
IEST-STD-CC1246 Level 100 R1
(Exceeds ASME B40. 100 Level IV)

Working Pressure

Stable                          75%   FS
Fluctuating pressure    66%   FS
Short time                    100% FS

Working Environment

Ambient Temperature -40°C ~65°C
Medium max.              +100°C
Relative humidity        50%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
1/4" NPT male
316L SS
(available upon request)

Fitting
Lower Mount (L)
Center Back Mount (C)

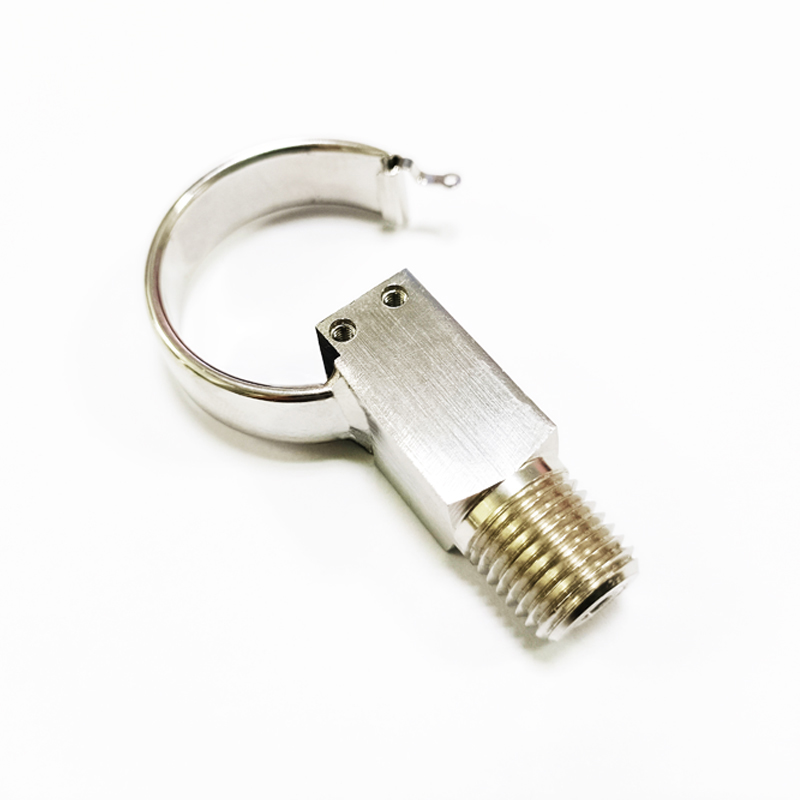

Measuring Element
Bourdon tube : 316L SS
Movement : 304 SS

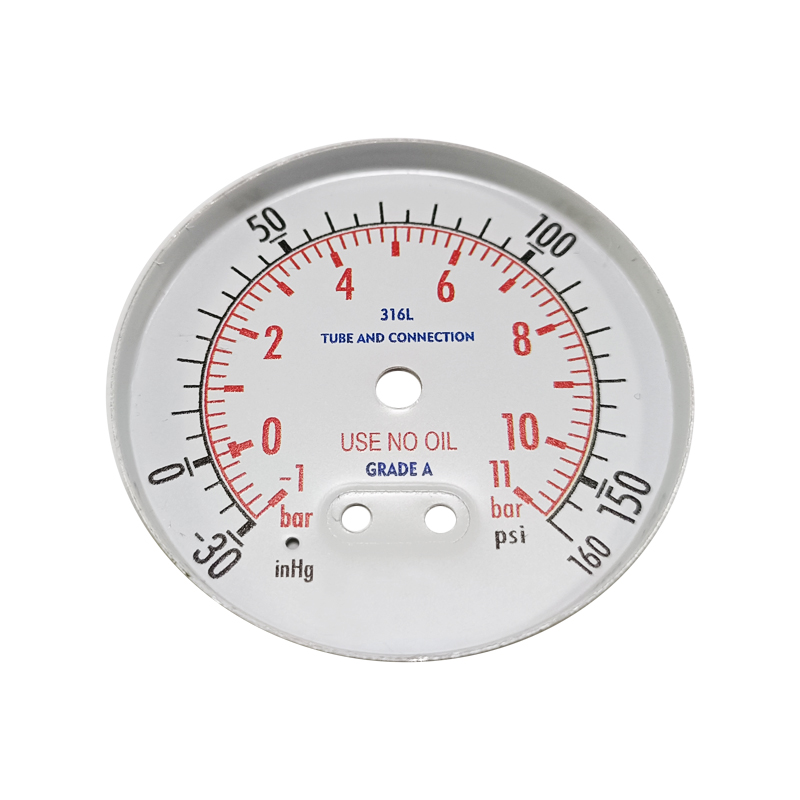

Dial
Aluminum

Pointer
Aluminum

Case
304 SS (electrolytic polishing)

Window
Polycarbonate(PC)
