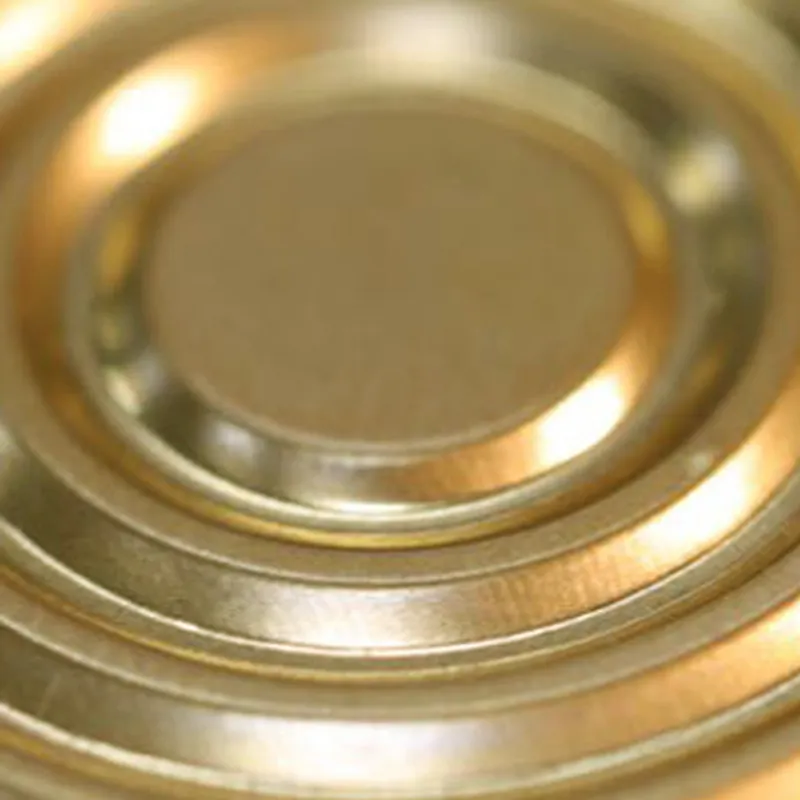

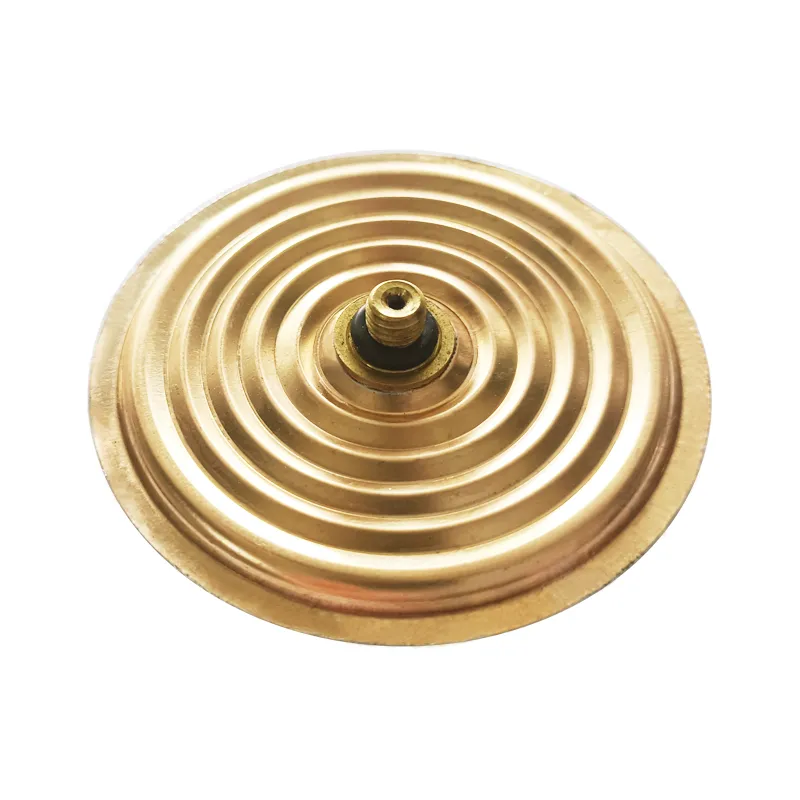

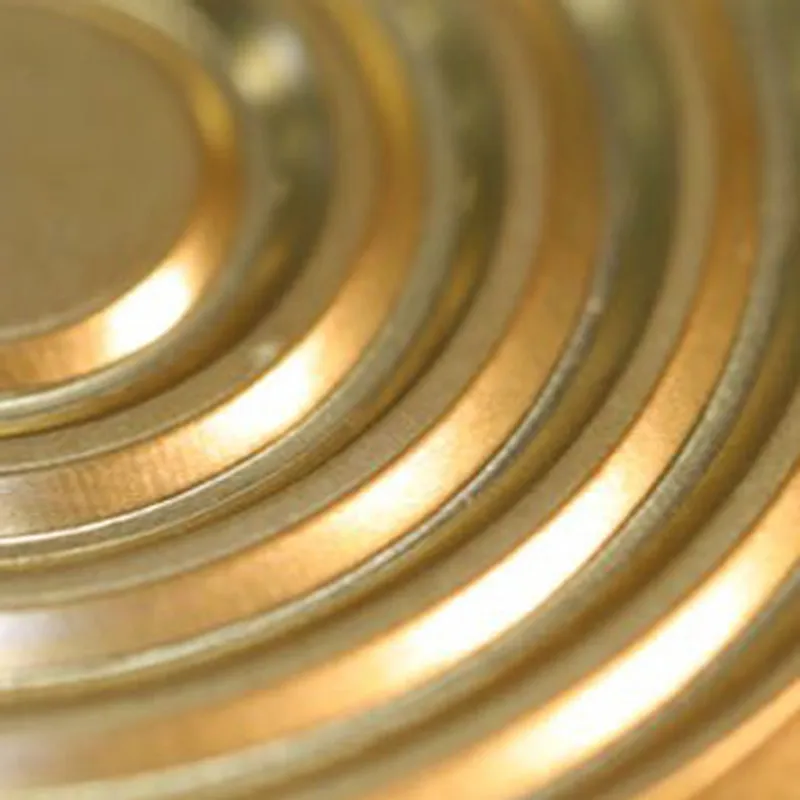

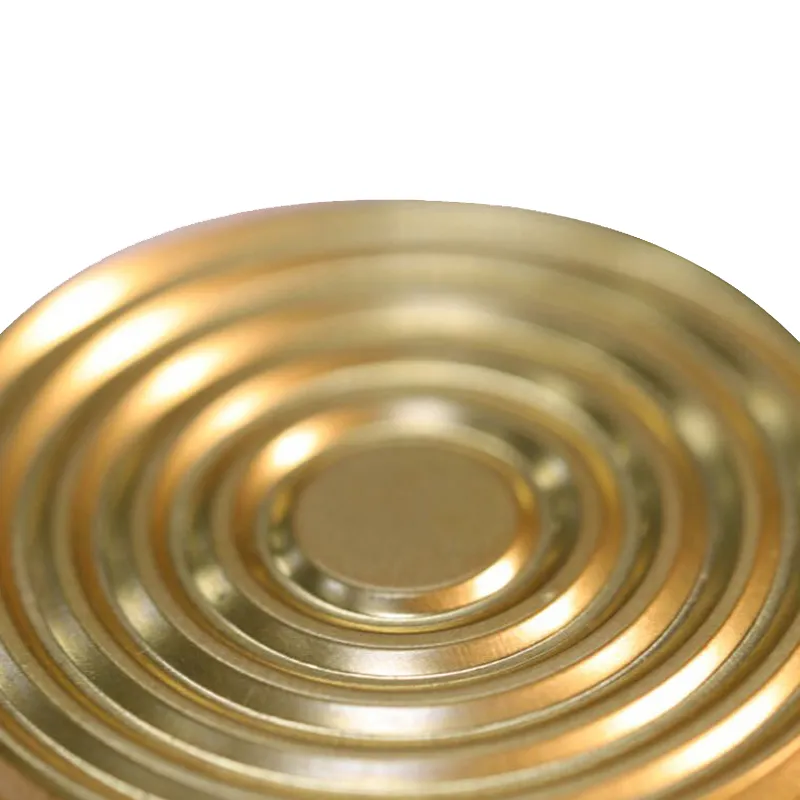

Pressure Diaphragm Capsule(DC)-All copper type-48mm

It is suitable for measuring the micro - pressure and negative pressure of copper alloy without corrosion and explosion dangerous gas.




Model  :  C+H Ø48A （C48）

Nominal Diameter  (mm)  :  48

Displacement (mm)  :  1.15±0.1

Accuracy Class(%)  :  1；1.6；2.5

Range  can  be  made  :  0-2.5~100 kPa




down load to pdf

Details

Tags

PRODUCT SPECIFICATION

Model

C+H Ø48A （C48）

Nominal Diameter  (mm)

48

Displacement (mm)

1.15±0.1

Accuracy Class(%)

1；1.6；2.5

Range  can  be  made

0-2.5~100 kPa

Load Capacity

Static Load                  ≤ Full Scale

Fluctuating Load          ≤ 90% Full Scale

Overload Safety Value  ≤ 125% Full Scale

Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.               +55°C

Relative humidity           ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference

temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale



STANDARD CONFIGURATION



Measuring Element

Beryllium Copper

Fitting

M5 (Sealing ring connection)
