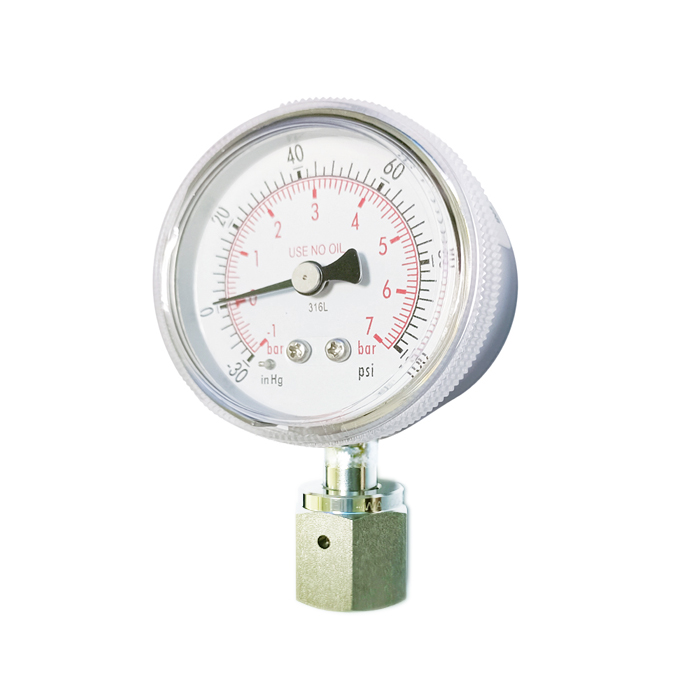

Model

UPG50-VP/AP-G-L/C

Nominal Diameter (mm)
50

Pressure Range
Item No：66002--- -30inHG~0~300psi / 0~600psi

Displacement (mm)
1.1~1.4

Accuracy (%)
ASME 40.100-2013 GradeA

Gas path sur face finish
< 10 Ra µin (Internal)

Cleanliness
IEST-STD-CC1246 Level 100 R1
(Exceeds ASME B40. 100 Level IV)

Working Pressure

Stable                           75%   FS
Fluctuating pressure     66%   FS
Short time                     100% FS

Working Environment

Ambient Temperature     -40°C ~65°C
Medium max.                  +100°C
Relative humidity            50%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
VCR1/4" Fmale Face Seal Swivel
316L SS
VCR tubes and fittings
316L VAR SS (SEMI F20 UHP)
(available upon request)

Fitting
Lower Mount (L)
Center Back Mount (C)

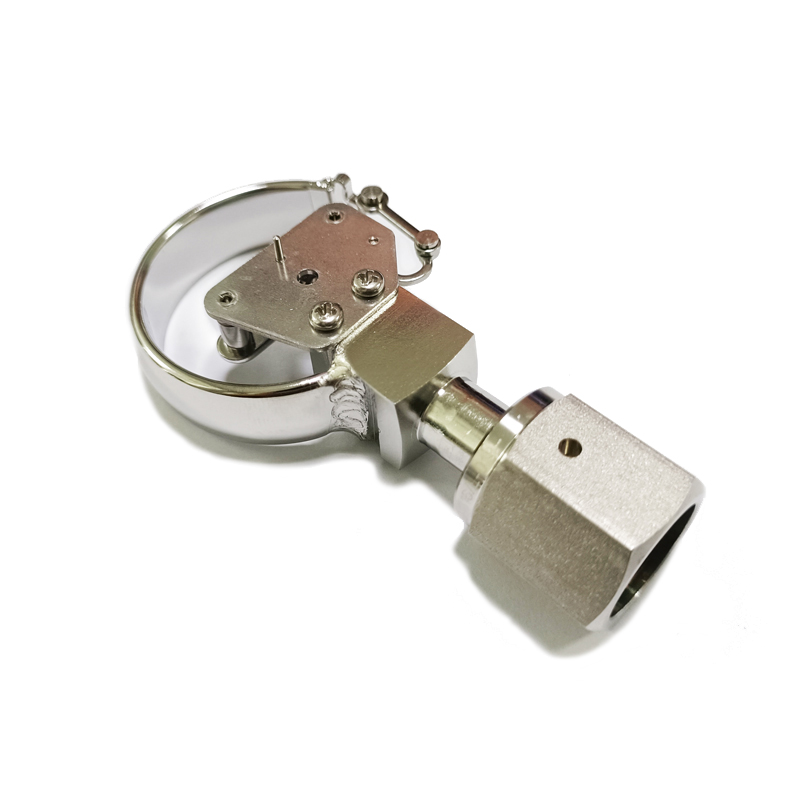

Measuring Element
Bourdon tube : AISI 316L VM SS
Movement : 304 SS

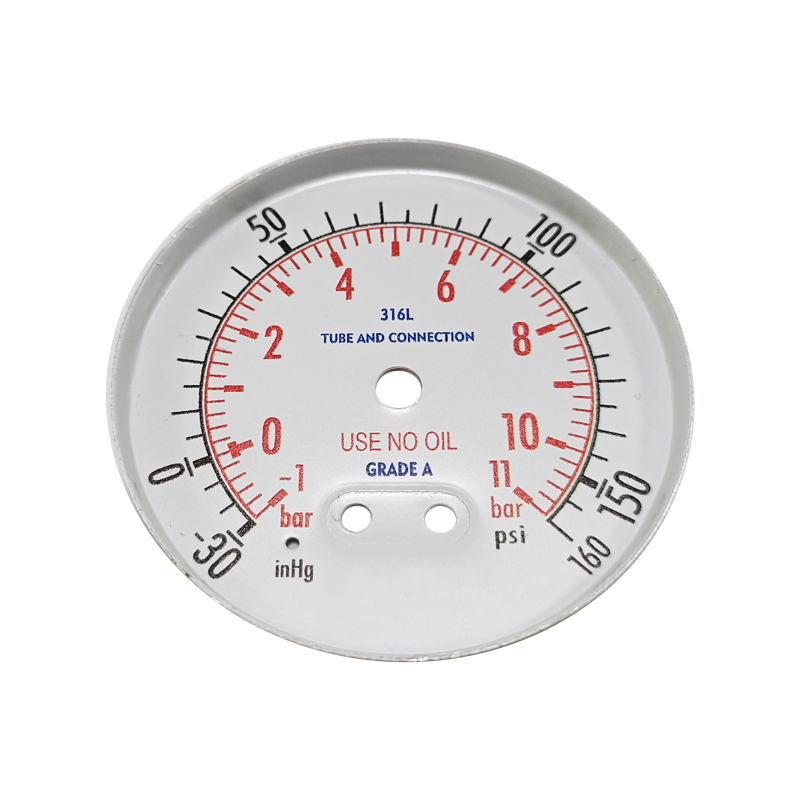

Dial
Aluminum

Pointer
Aluminum

Case
304 SS (electrolytic polishing)

Window
Polycarbonate(PC)
