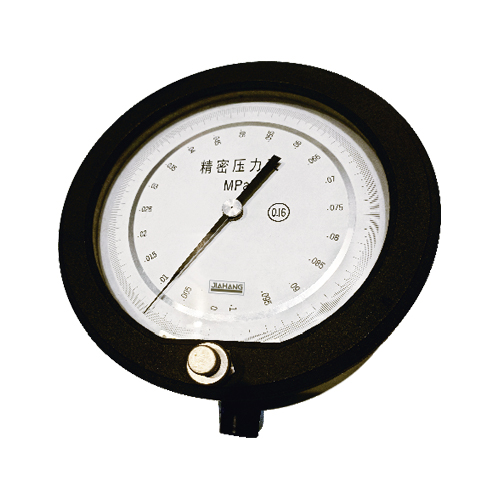

Model

YB-160

Nominal Diameter (mm)
160

Pressure Range
Item No：43004---0~0.1MPa

Displacement (mm)
1.1~1.4

Accuracy (%)
0.16

Load Capacity
Static Load                   ≤ Full Scale
Fluctuating Load          ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature  +5~40°C
Relative humidity         ≤80%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
CrV chromium vanadium steel
316 stainless steel / Brass
M20X1.5 ; 1/2" NPT ; G1/2" (Available upon request)

Fitting
Lower Mount (L)

Measuring Element
Bourdon tube
Chromium Vanadium Steel / 316SS / Phosphor Copper
Movement : SS / Copper Alloy / Copper Alloy

Zero adjustment
Front

Dial
Aluminum, (white)

Pointer
Aluminum, ( black)

Case
Cast aluminum

Washer
ABS

Window
Stalinite
