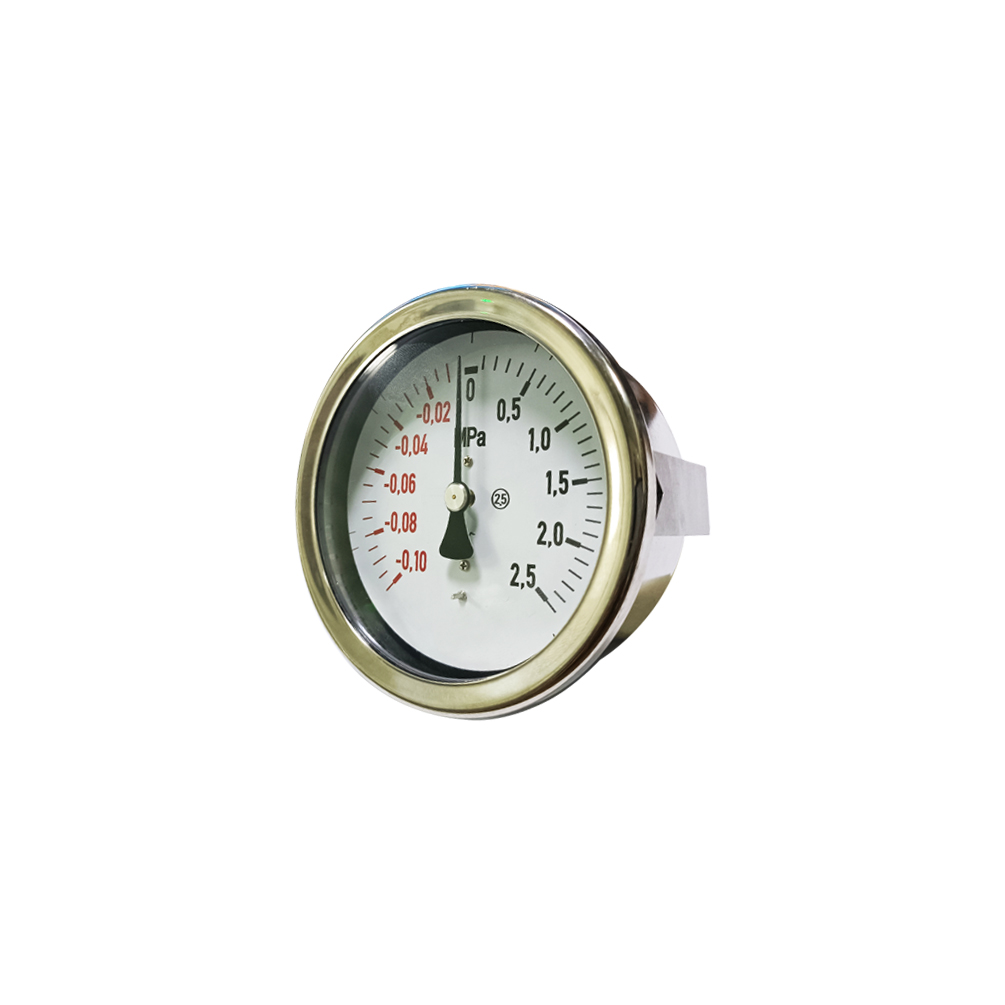

Model

YXF-80(Z)

Nominal  Diameter  (mm)

80

Displacement (mm)

1.1~1.4

Accuracy Class(%)

1.6；2.5

Pressure Range

Item No：34001---   -0.1 ~ 0(50%span) ~ 2.5 (50%span)MPa

Load Capacity

Static Load                      ≤ Full Scale

Fluctuating Load             ≤ 90% Full Scale

Overload Safety Value    ≤ 125% Full Scale

Working Environment

Ambient Temperature      -25°C ~55°C
Medium max.                   +55°C
Relative humidity             ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

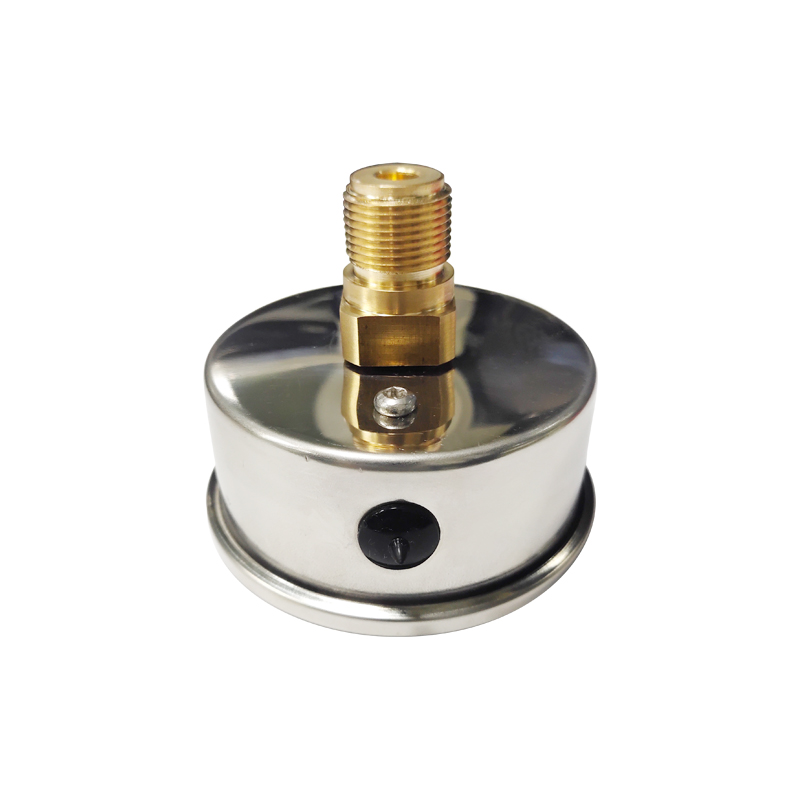

Connection
Brass ,
M20X1.5
(available upon request)

Fitting

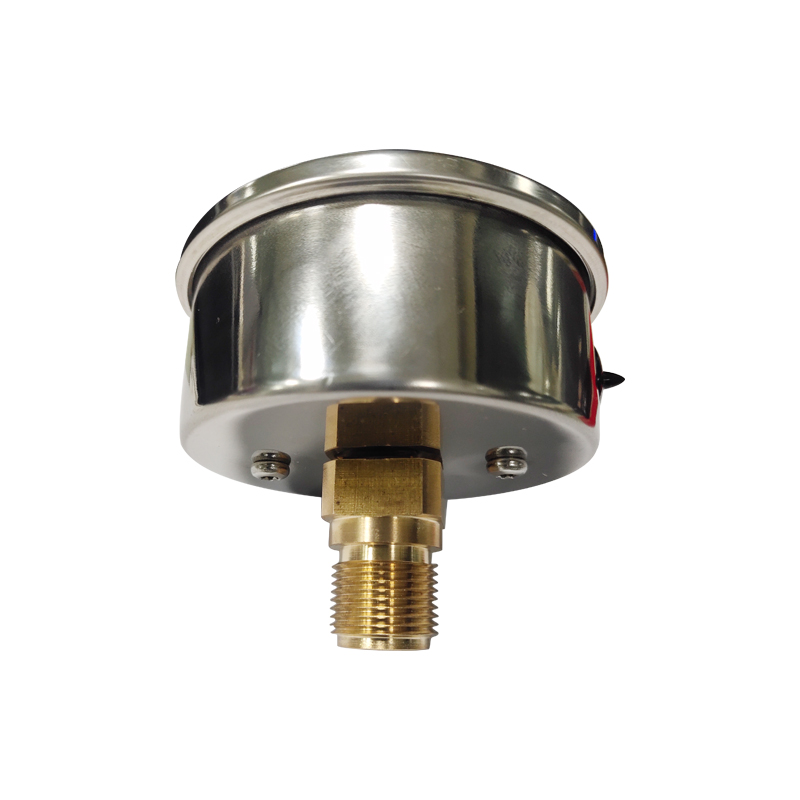

Lower Mount (L)

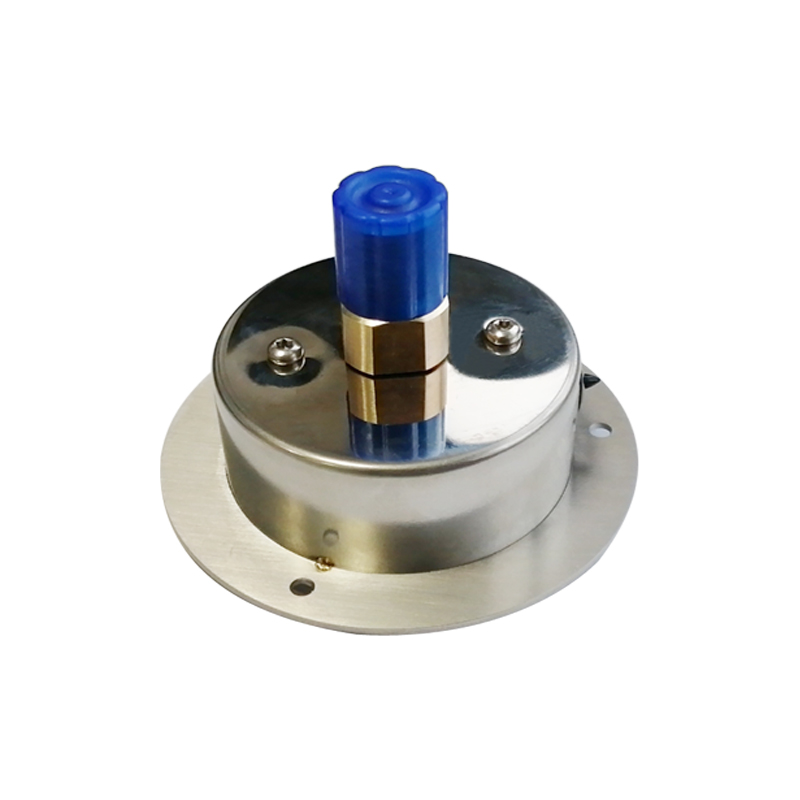

Center Back Mount (C)

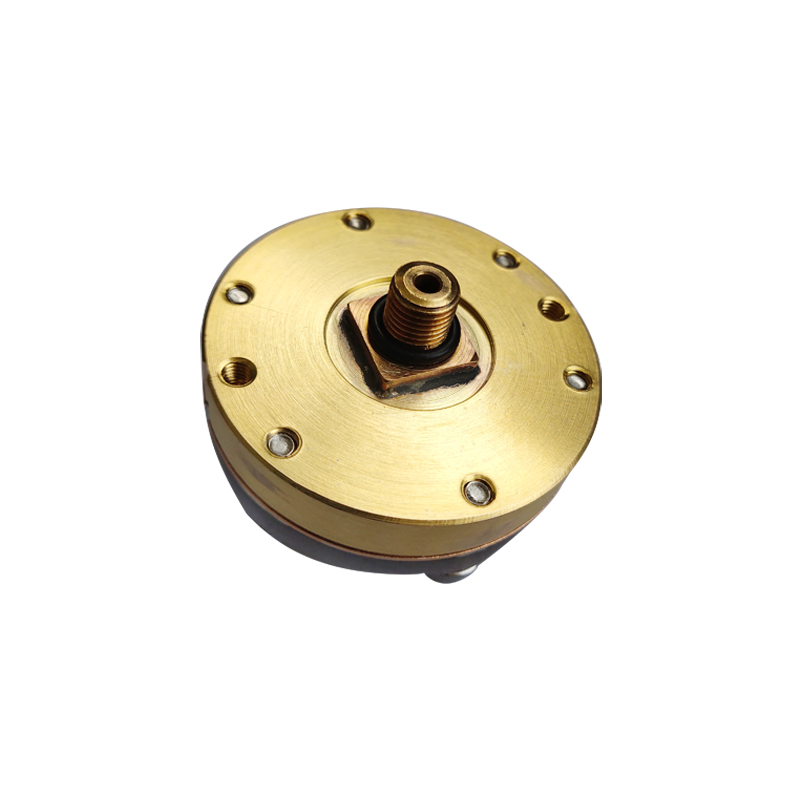

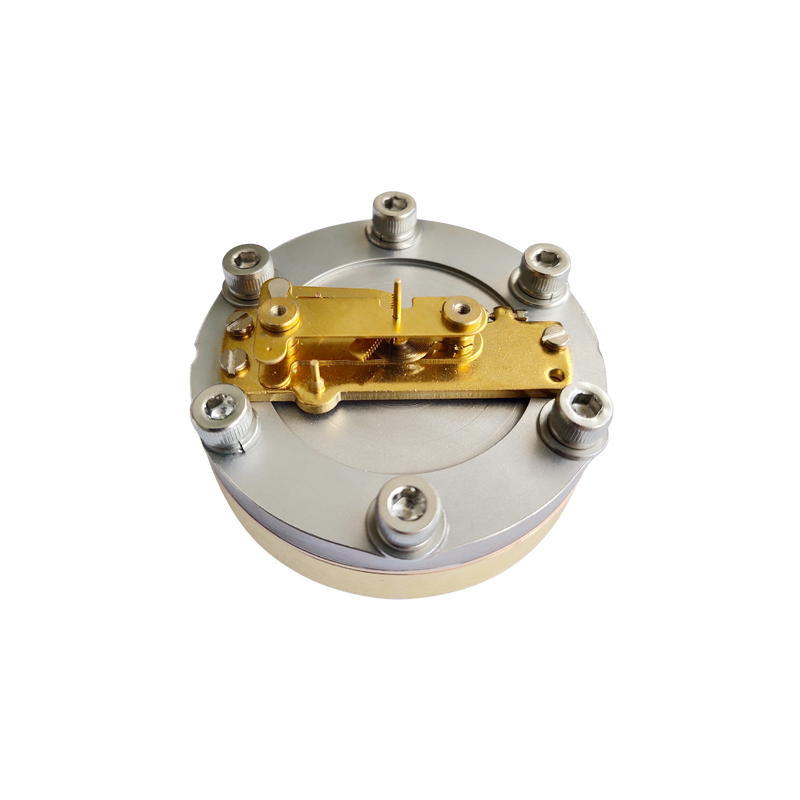

Measuring Element
Diaphragm : Beryllium copper
Movement : Copper alloy
Pressing plate : Zinc alloy

Dial
Aluminum, style and color available upon request

Pointer
Aluminum, Black

Case&Bayonet Ring
304SS

Washer

Buna-N rubber

Window

Polycarbonate PC

Fill fluid
Glycerin/silicone oil ,Yes / No
