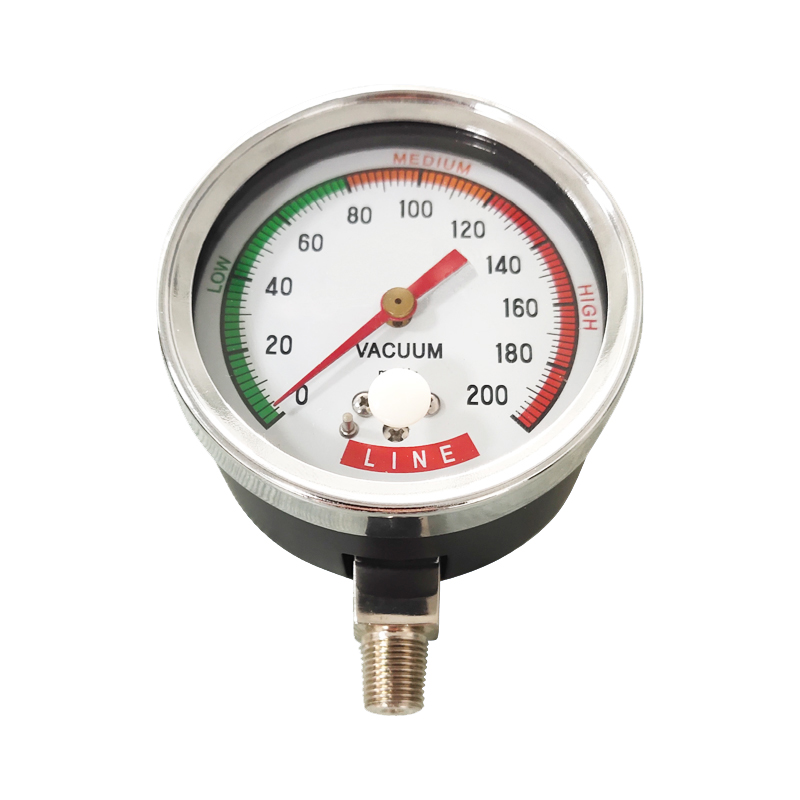

Model

YEY-70

Nominal Diameter (mm)
70

Dial Size (mm)
63

Pressure Range
Item No：19005---0~200mmHg

Displacement (mm)
1.1~1.4

Accuracy (%)
2-1-2

Load Capacity
Static Load                 ≤ Full Scale
Fluctuating Load         ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature -25°C ~55°C
Medium max. +55°C
Relative humidity ≤ 80%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

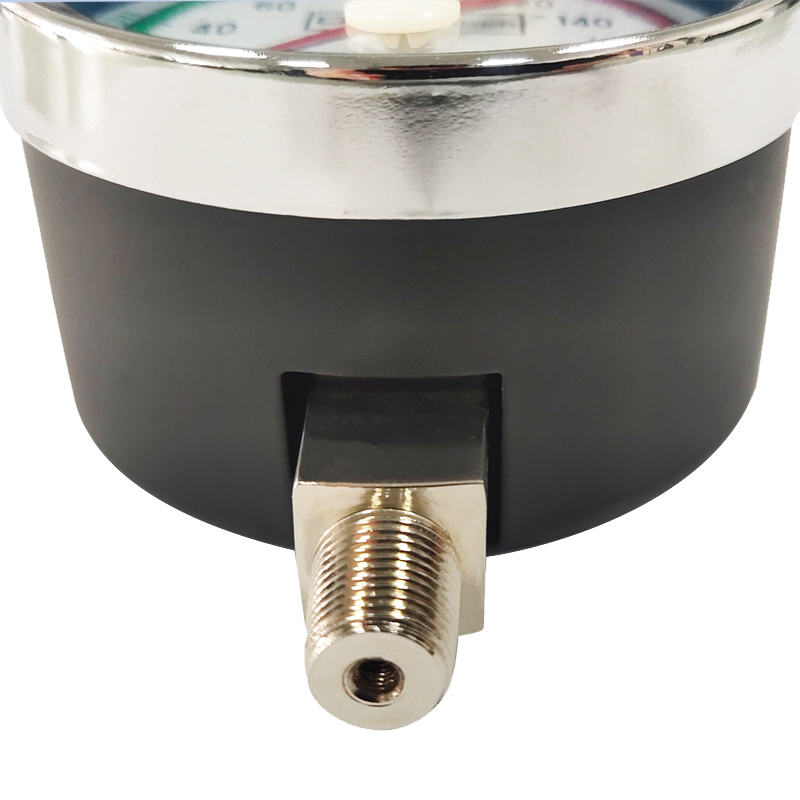

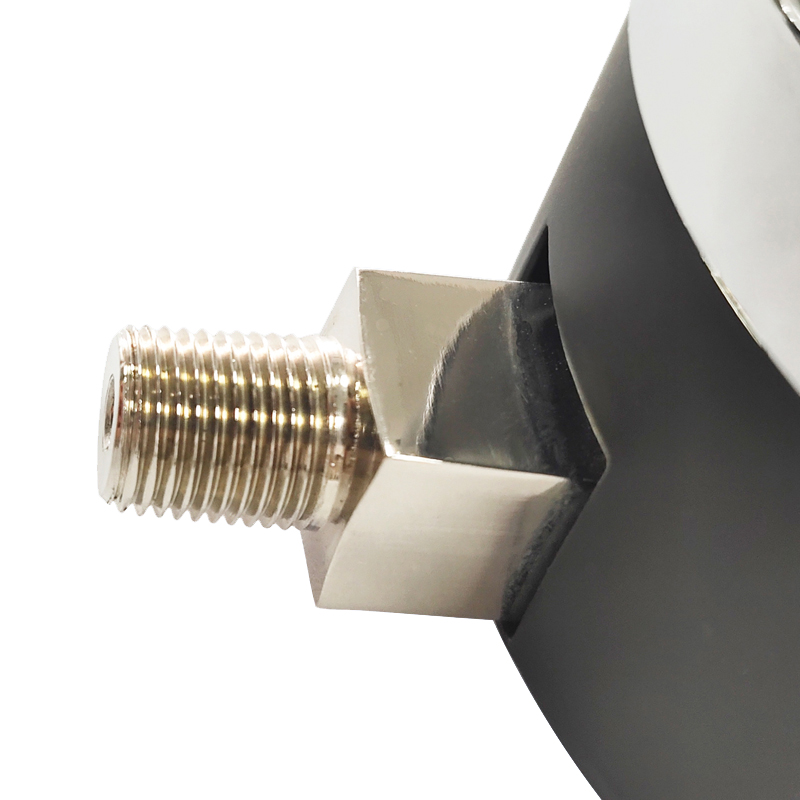

Connection
Brass electroplating
M10X1 ; 1/8"NPT ; G1/8" (available upon request)

Fitting
Lower Mount (L)
Center Back Mount (C)

Measuring Element
Capsule : Beryllium copper
Movement : Copper alloy

Dial
Aluminum, style and color available upon request

Pointer
Aluminum, style and color available upon request

Case
Carbon steel Black coating

Bayonet Ring
Carbon steel electroplating

Window
PC
