Model

YEY-60

Nominal  Diameter (mm)

60

Dial Size (mm)

53.5

Displacement (mm)

1.1~1.4

Accuracy Class(%)

2-1-2

Range can be made

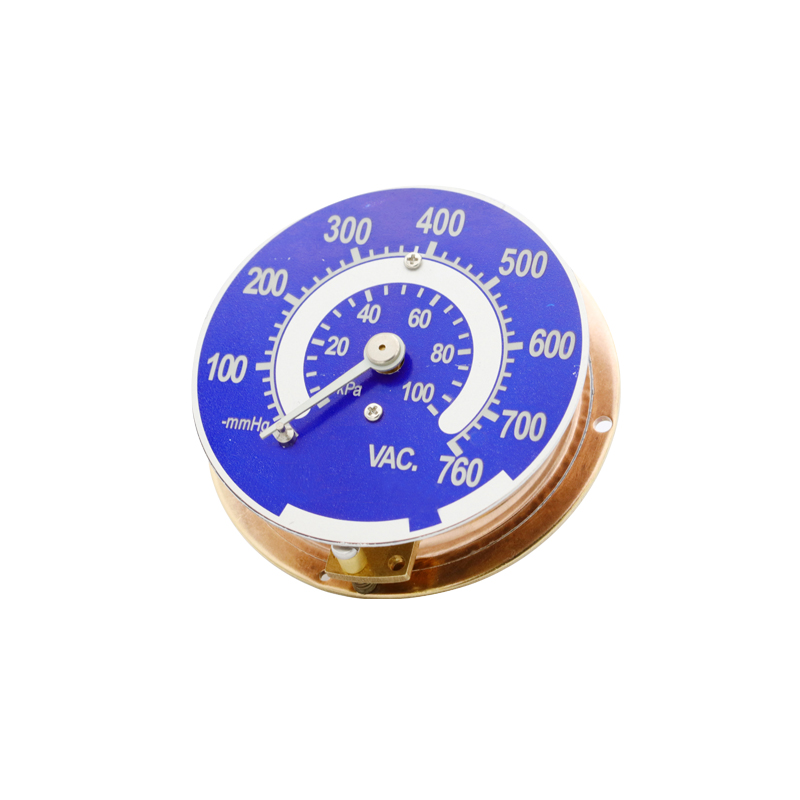

Item  No：19003---56A   -760~0mmHg

Load Capacity

Static Load                      ≤ Full Scale

Fluctuating Load             ≤ 90% Full Scale

Overload Safety Value    ≤ 125% Full Scale

Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.                +55°C

Relative humidity            ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection

Brass

Threadless (Sealing ring connection)

Fitting

Lower Mount (L)

Center Back Mount (C)

Measuring Element

Capsule : Beryllium copper
Movement : Copper alloy

Dial

Aluminum, style and color available upon request

Pointer

Aluminum, style and color available upon request

•

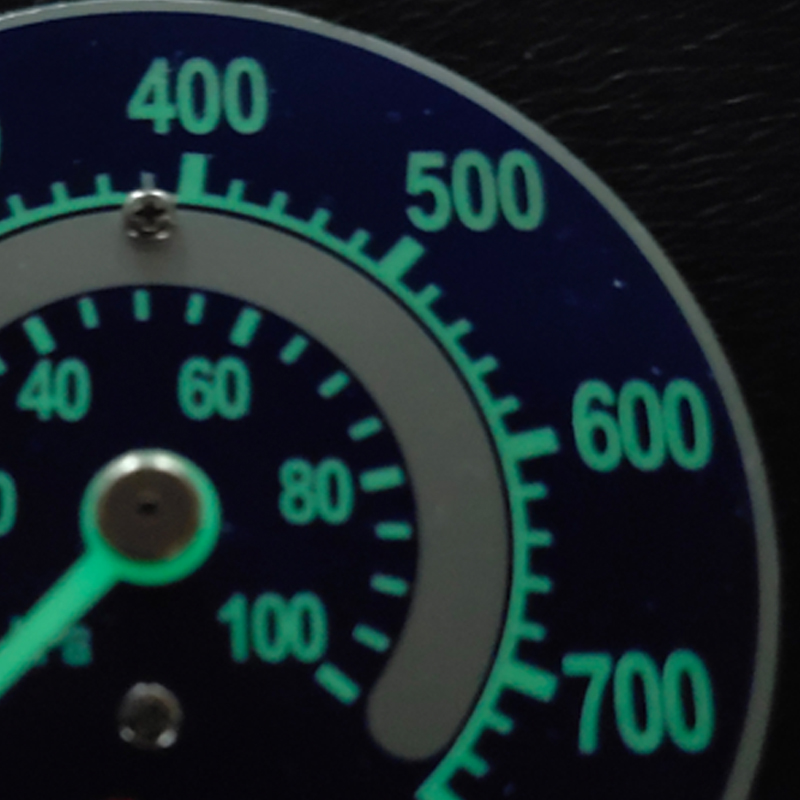

  Luminous display,

  Calibration clear

  High precision accuracy

•

  No leakage,residue

  No spots, corrosion

  Unified production

  Ensure high product stability

•

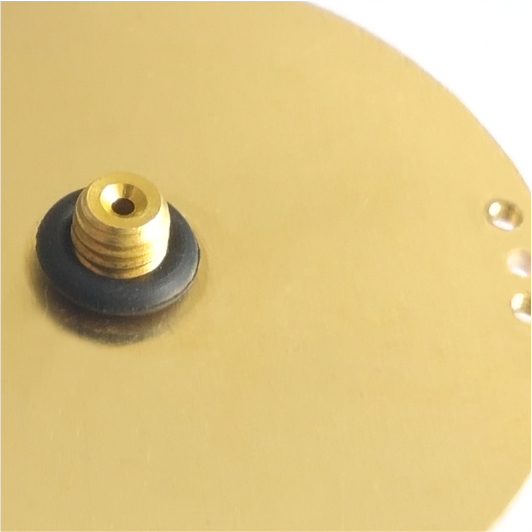

  Bottom interface seal ring

  Ensure air tightness

•

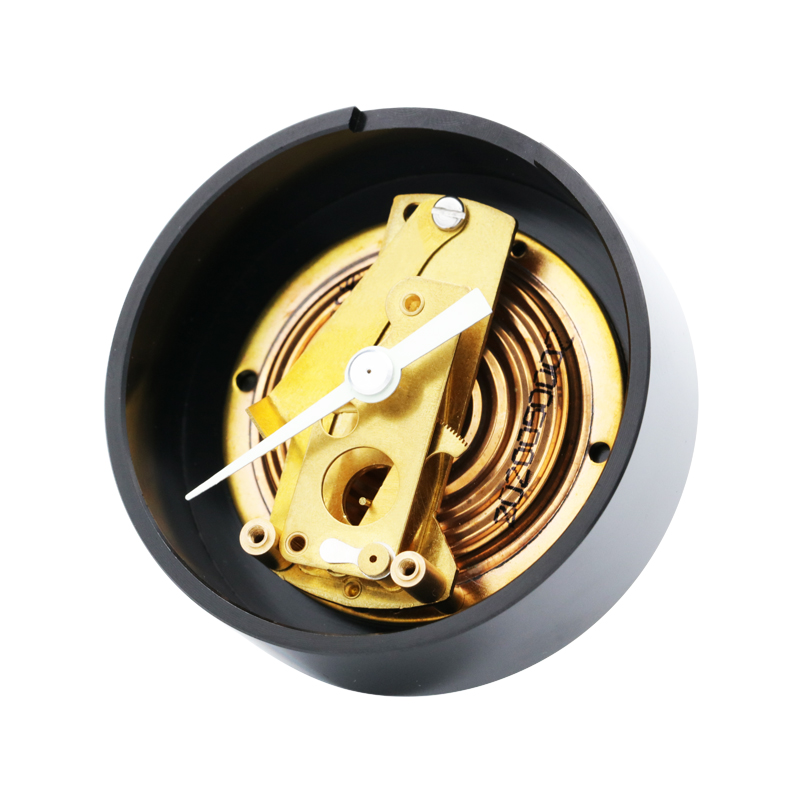

  Copper alloy core

  Smooth and precise transmission

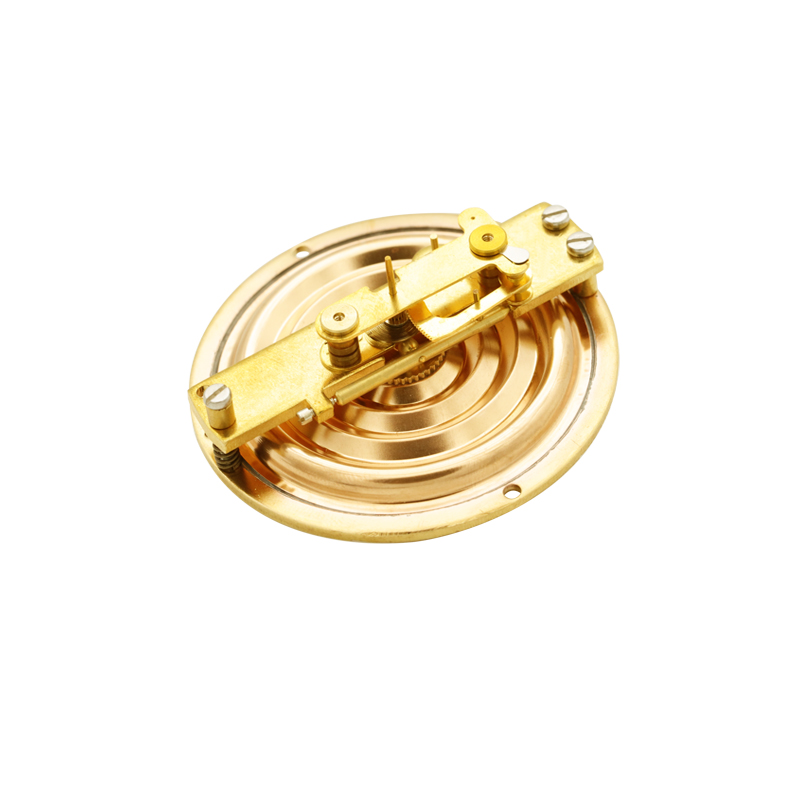

  Beryllium copper capsule

  Stable performance

Model

YEY-60

Nominal  Diameter (mm)

60

Dial Size (mm)

53.5

Displacement (mm)

1.1~1.4

Accuracy Class(%)

2-1-2

Range can be made

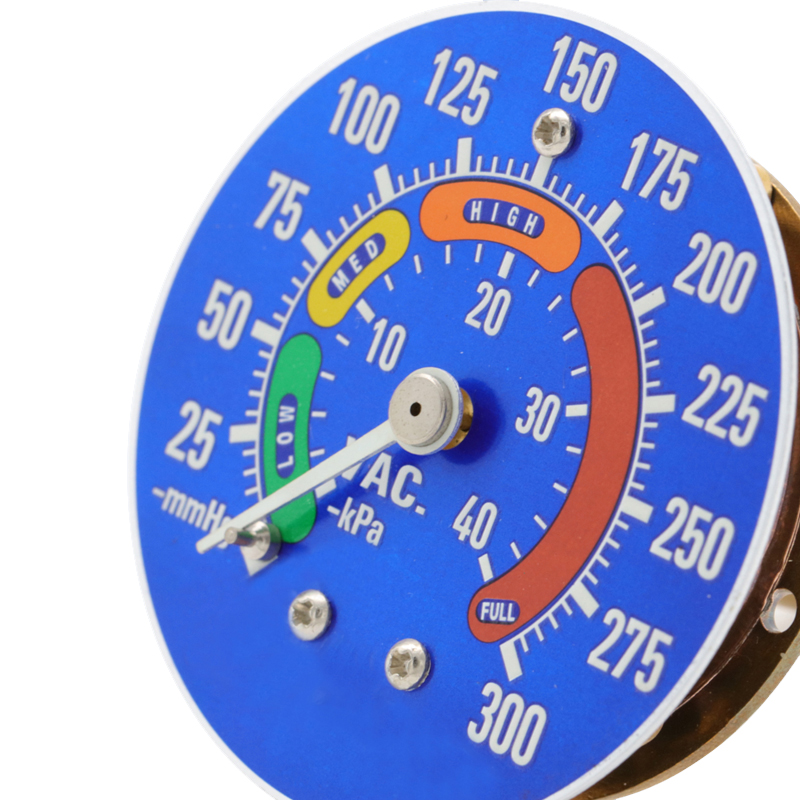

Item  No：19002---45A    -300~0mmHg

Load Capacity

Static Load                  ≤ Full Scale

Fluctuating Load          ≤ 90% Full Scale

Overload Safety Value  ≤ 125% Full Scale

Working Environment

Ambient Temperature     -25°C ~55°C

Medium  max.                +55°C

Relative humidity            ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection

Brass

Threadless (Sealing ring connection)

Fitting

Center Back Mount (C)

Measuring Element

Capsule :     Beryllium copper
Movement : Copper alloy

Dial

Aluminum, style and color available upon request

Pointer

Aluminum, style and color available upon request

•

  Luminous display,

  Calibration clear

  High precision accuracy

•

  Copper alloy core

  Smooth and precise transmission

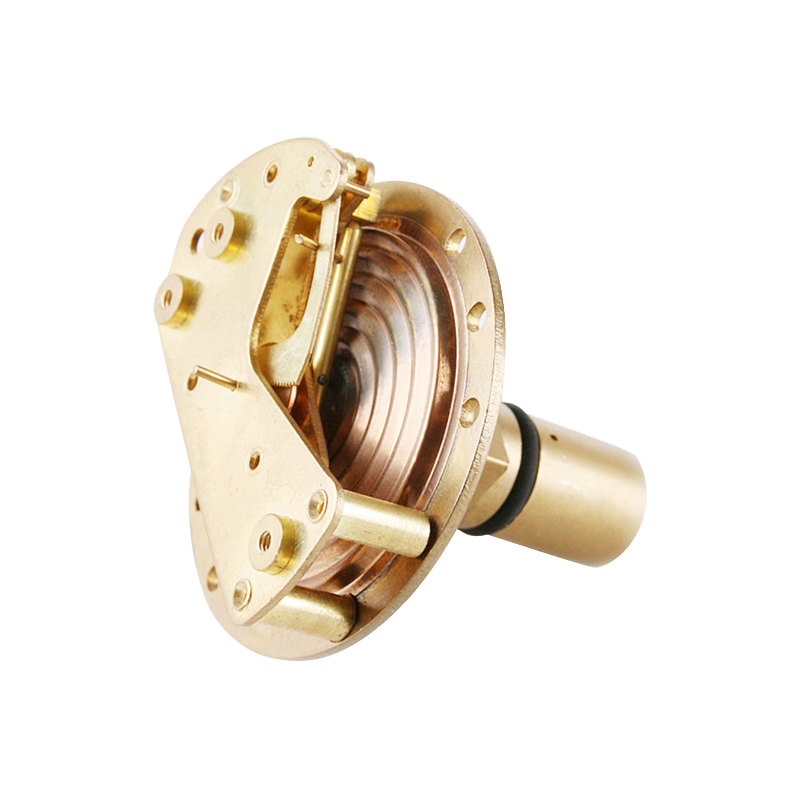

  Beryllium copper capsule

  Stable performance

•

  Calibration clear

  High precision

  accuracy

•

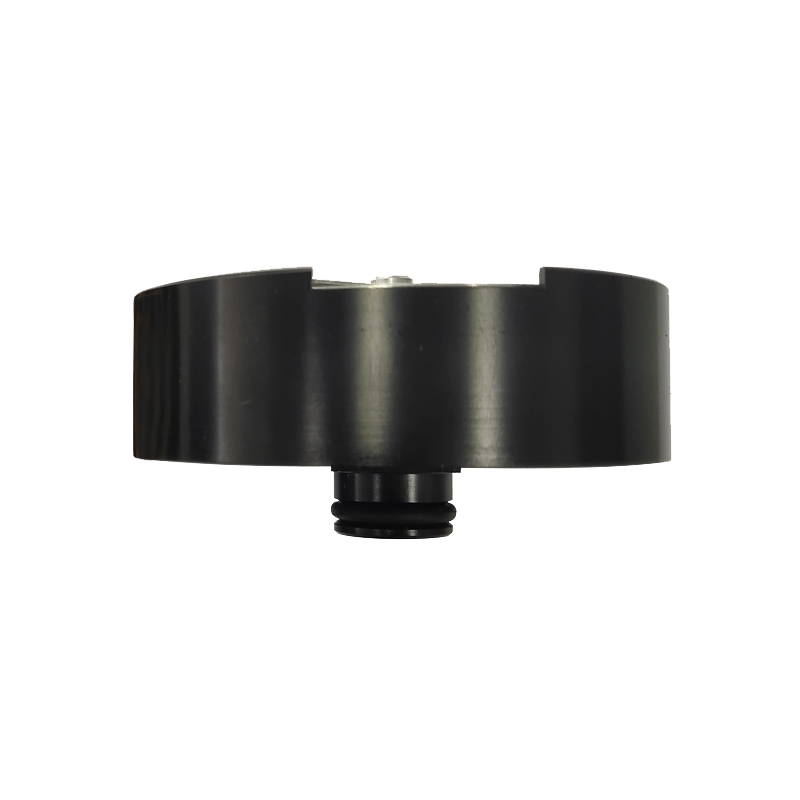

  Bottom interface

  seal ring

  Ensure air tightness

Model

YEY-60

Nominal  Diameter (mm)

60

Dial Size (mm)

55

Displacement (mm)

1.1~1.4

Accuracy Class(%)

2-1-2

Range can be made

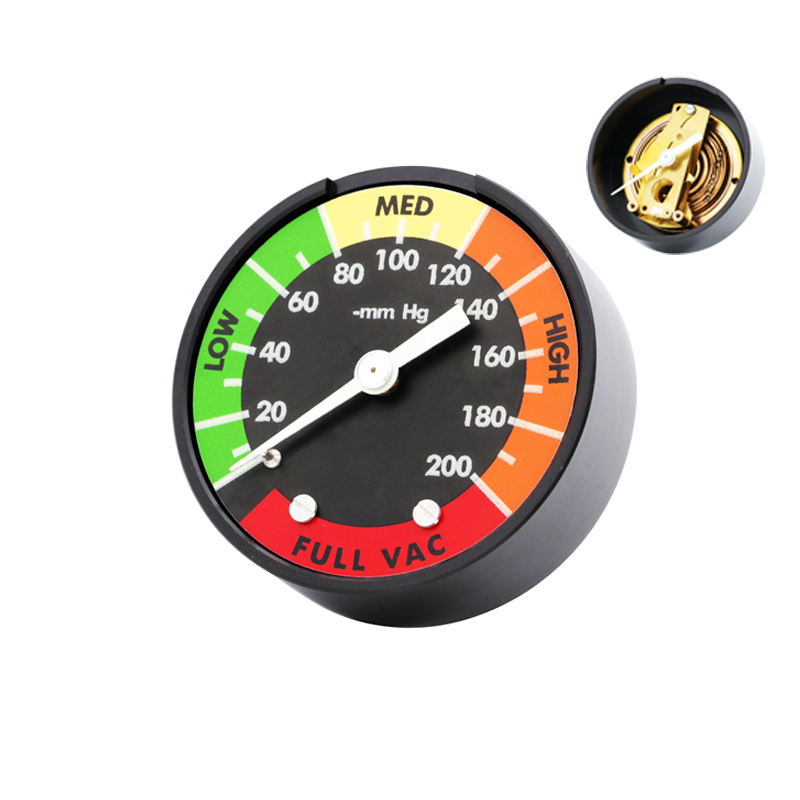

Item  No：19001---45A   -200~0mmHg

Load Capacity

Static Load                       ≤ Full Scale

Fluctuating Load              ≤ 90% Full Scale

Overload Safety Value     ≤ 125% Full Scale

Working Environment

Ambient Temperature      -25°C ~ 55°C

Medium  max.                 +55°C

Relative humidity             ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection

Brass

Threadless (Sealing ring connection)

Fitting

Lower Mount (L)

Center Back Mount (C)

Measuring Element

Capsule :     Beryllium Copper
Movement : Copper alloy

Dial

Aluminum, style and color available upon request

Pointer

Aluminum, style and color available upon request

Case

ABS

•

  Luminous display,

  Calibration clear

  High precision accuracy

•

  Copper alloy core

  Smooth and precise transmission

  Beryllium copper capsule

  Stable performance

•

  Shell environmental friendly material

  Clean and beautiful

  Top notch design

  Case top notch design

•

  316 / L SS  Connection

  Good corrosion resistance
