Model

YE-(40-160)

Nominal  Diameter  (mm)

40,50,63,65,70,75,80,100,150,160

Displacement (mm)

1.1~1.4

Accuracy Class(%)

1；1.6；2.5

Range can be made

0-0.4~100 kPa

Load Capacity

Static Load                       ≤ Full Scale

Fluctuating Load              ≤ 90% Full Scale

Overload Safety Value     ≤ 125% Full Scale

Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.                +55°C

Relative humidity            ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection

Brass ,

M10X1 ;M14X1.5 ;M20X1.5

1/4"NPT ;3/8"NPT ;1/2"NPT (available upon request)

Fitting

Lower Mount (L)

Center Back Mount (C)

Measuring Element

Capsule :        Beryllium  copper

Movement : Copper alloy

Zero adjustment

Front / Back (Available upon request)

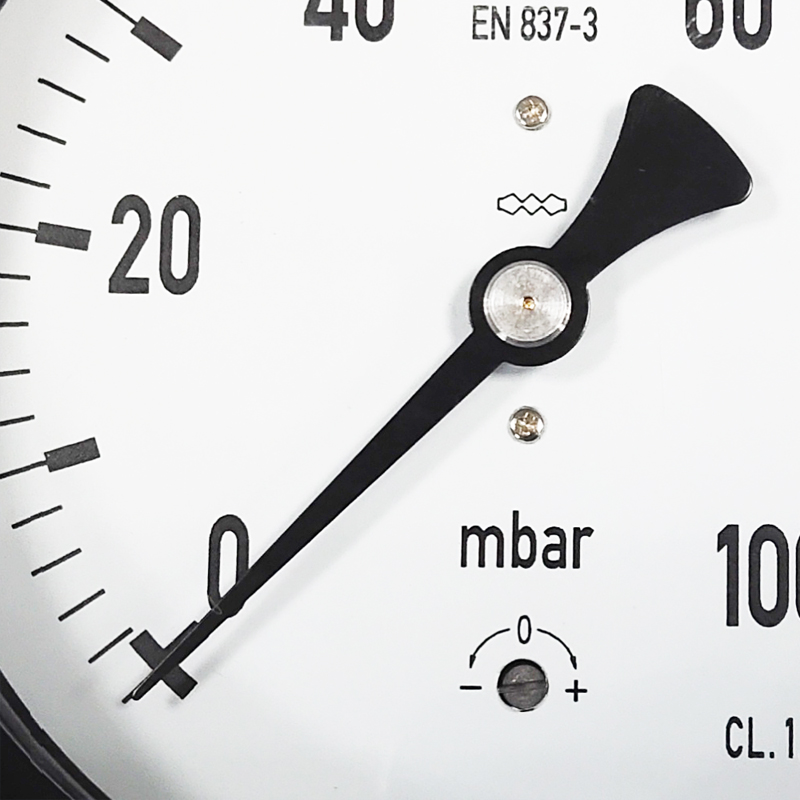

Dial

Aluminum, style and color available upon request

Pointer

Aluminum, style and color available upon request

Case&Bayonet Ring

Carbon steel (black electrostatic spraying/electrophoresis/electroplating)

Washer

Buna-N rubber

Window

Instrument glass (Standard safety glass)
