Type

1.YCC-80：Standard

2.YCC-80RC：Reed-contact(1~2):cable connector 6 screws terminals + PE, cross section

of the conducting wire 2,5 mm², screw type conduit . M20X1.5

3.YCC-80SD：With separating diaphragm(316SS)

Pressura dolor

YCC-80 / YCC-80RC  :  0-400mbar to 0-10bar

YCC-80SD : 0-160mbar to 0-2.5bar

Sagaciter (%)

YCC-80 / YCC-80RC  :  ±3 % of full scale value with increasing differential pressure

YCC-80SD ： ±5 % of full scale value with increasing differential pressure

Pressure Max. Motionless

100bar/250bar/400bar

Quantitas onus

Static Load≤Full Scale

Fluctuating Load≤90%

Full Scale Overload Safety Value≤125% Full Scale

Situs laboris

Ambient Temperature -25~55°C Medium max. +55°C Relative humidity 45~75%

Temperatus Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by

approximately ±0.6% per 10°C of full scale

Pressure Connection

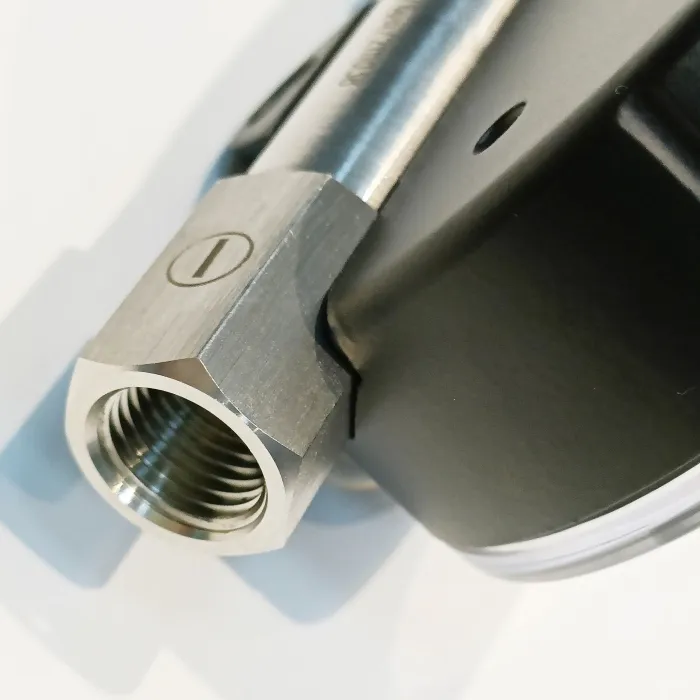

316 SS , G1/4";1/4"NPT or other

Mounting

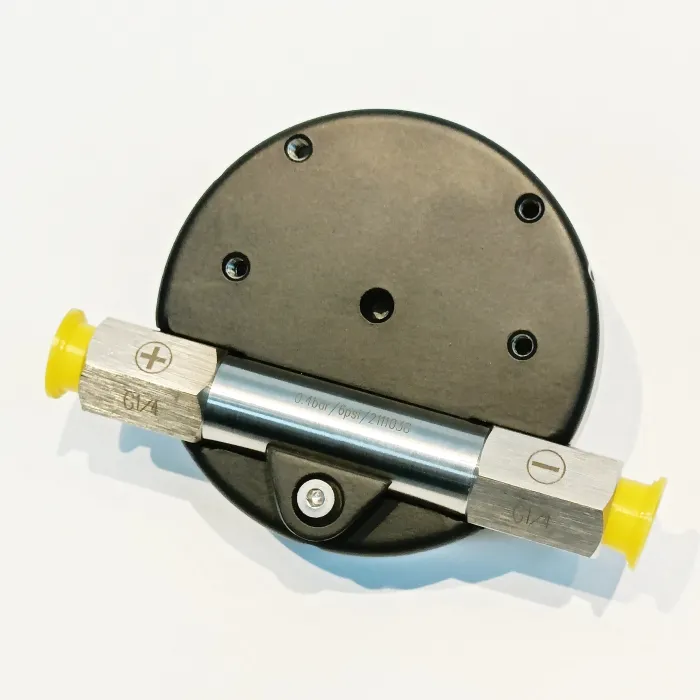

Centrum Back Mount (C)

left in ,right out/ right in ,left out

Mounting by means of:

■ Rigid measuring lines

■ Panel mounting flange (only with model YCC-80 & YCC-80RC)

■ Instrument mounting bracket for wall mounting

Sensing Element

Pressure spring : 65Mn / SS

Magnet : Ferrite

Piston：316 SS

Nulla temperatio

Zero in front of window , H62 electroplate

Dial

Aluminium, stilus et color in promptu sunt rogantes

Indicium

Aluminum, Black pressure pointer (+ red memory pointer)

Casus

Aluminum alloy - Die casting,black(Options:fastening for wall mounting)

Ring

None(Options:Front flange)

Fenestra

PC,snap-fitting

Protection

IP 54 acc. to EN 60 529 / EC 529
