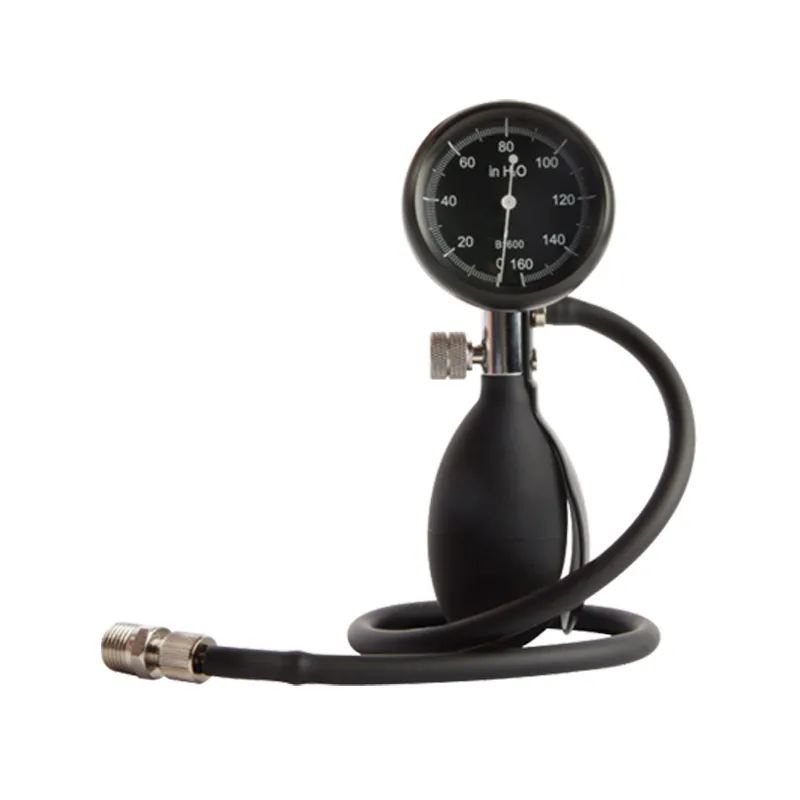

Capsule Pressure Gauge - Medical Type(Squeeze Bulb-Blood Pressure Monitor)

Thank you for purchasing your JIAHANG Pressure Gauge. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual , your product will provide years reliable service.

● Squeeze-Bulb design

● Full safety pattern conforms to En837

● Check-Valve thumb screw provides pressure lock and relief

● Threaded fitting allows for quick and easy connection to unit being tested

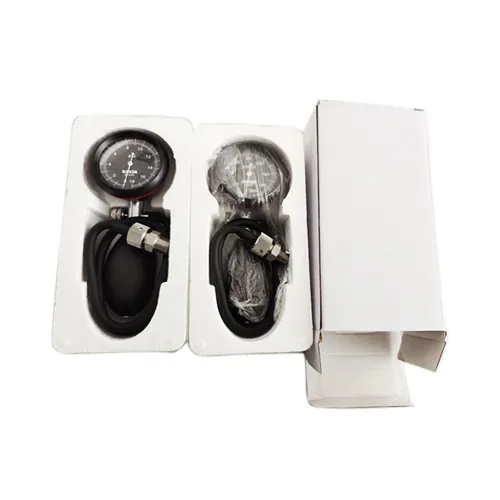

● Includes pressure calibrator, flexible hose, threaded ftting and carrying case

CONTACTER MAINTENANT télécharger en pdf

Détails

Mots clés

SPÉCIFICATION DE PRODUIT

Nominal Diameter(mm) :

2"(50mm)

Pressure Range B1600 :

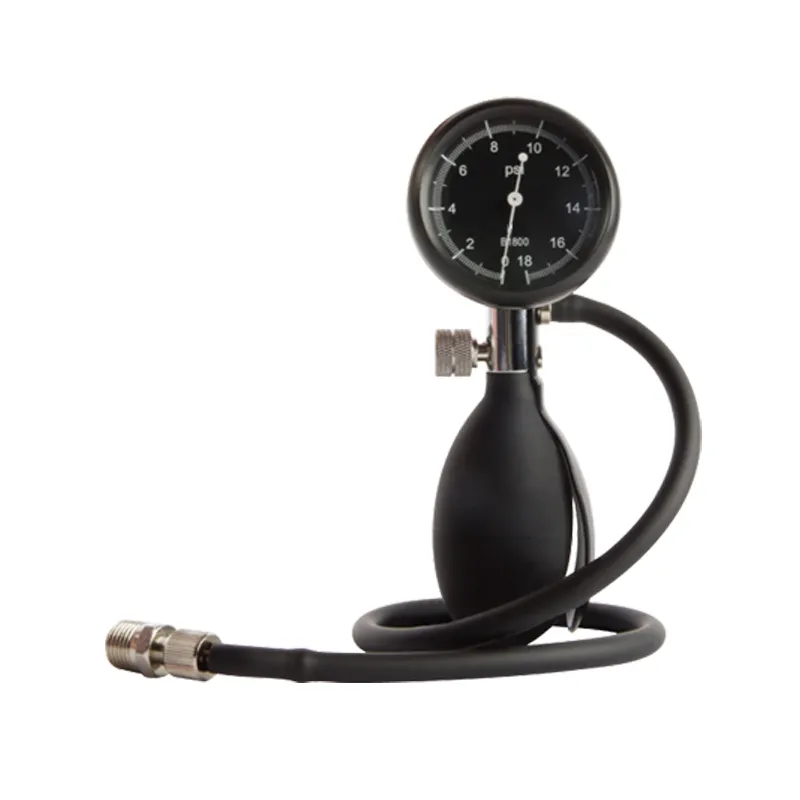

0 to 160 inH2O / B1800: 0 to 18 Psi

Displacement (mm) :

1.1~1.4

Accuracy (%) :

±(2- 1.5-2)%

Resolution B1600 :

1 inH2O / B1800: 1 Psi

Capacité de chargement

Static Load ≤ Full Scale

Fluctuating Load ≤ 90% Full Scale

Overload Safety Value ≤ 125% Full Scale

Environnement de travail

Operating Temperature: 32 to 104°F(0 to 40°℃)

Storage Temperature: 14 to122°F(-10 to 50°C)

Relative humidity ≤ 80%

Influence de la température

Accuracy at temperature above and below the reference temperature (20°C)

will be effected by approximately ±0.4% per 10°C of full scale

CONFIGURATION STANDARD

Connexion

Thread , 1/4"NPT (available upon request)

Hose Length : 50"(1.27m)

Raccord

Support inférieur (L)

Élément de mesure

Capsule : Beryllium copper

Movement : Copper alloy

Dial : Aluminum, White letters on black background

(disponible sur demande)

Pointer : Aluminum,White,(available upon request)

Case : Plastic

Window : PC

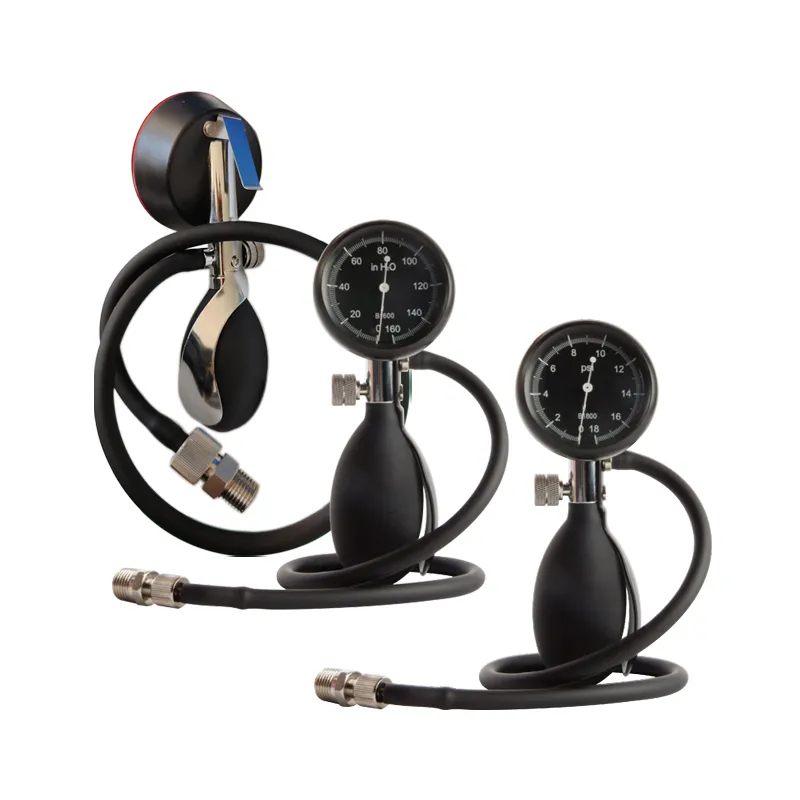

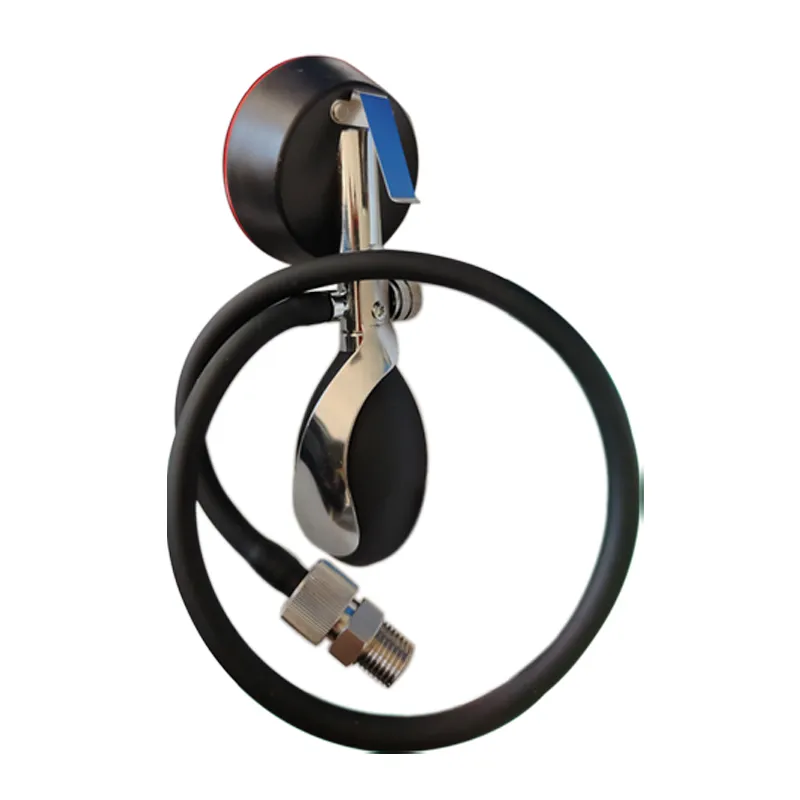

PICTURE DETAILS

APPARENCE ET DIMENSION D'INSTALLATION (MM)
